Width of Roller(mm)

Installed capacity（kw）

Workers

BFP-Ⅱ3Y

1000-1200

60×4×4.5

216～260

42

4

BFP -Ⅱ6Y

60,000 blocks/8 hours

1200-1400

66×6×4.5

300～330

56

4

BFP -Ⅱ8Y

80,000 blocks/8 hours

1300-1500

66×6×4.5

420～450

68

6

BFP -Ⅱ10Y

100,000 blocks/8 hours

1400-1600

75×7×5.0

420～450

80

6

BFP -Ⅱ12Y

120,000 blocks/8 hours

1800-2000

75×8×5.0

510～550

83

6

BFP -Ⅱ16Y

160,000 blocks/8 hours

2000-2400

90×8×5.5

630～650

106

7

BFP -Ⅱ18Y

180,000 blocks/8 hours

2400-2600

110×9×5.5

720～730

114

7

BFP -Ⅱ20Y

200,000 blocks/8 hours

2600-2800

120×9×5.5

765～800

125

8

BFP -Ⅱ25Y

250,000 blocks/8 hours

3000-3200

120×9×5.5

870～900

140

8

Equipment Name

Remarks

Pictures (for reference only)

1

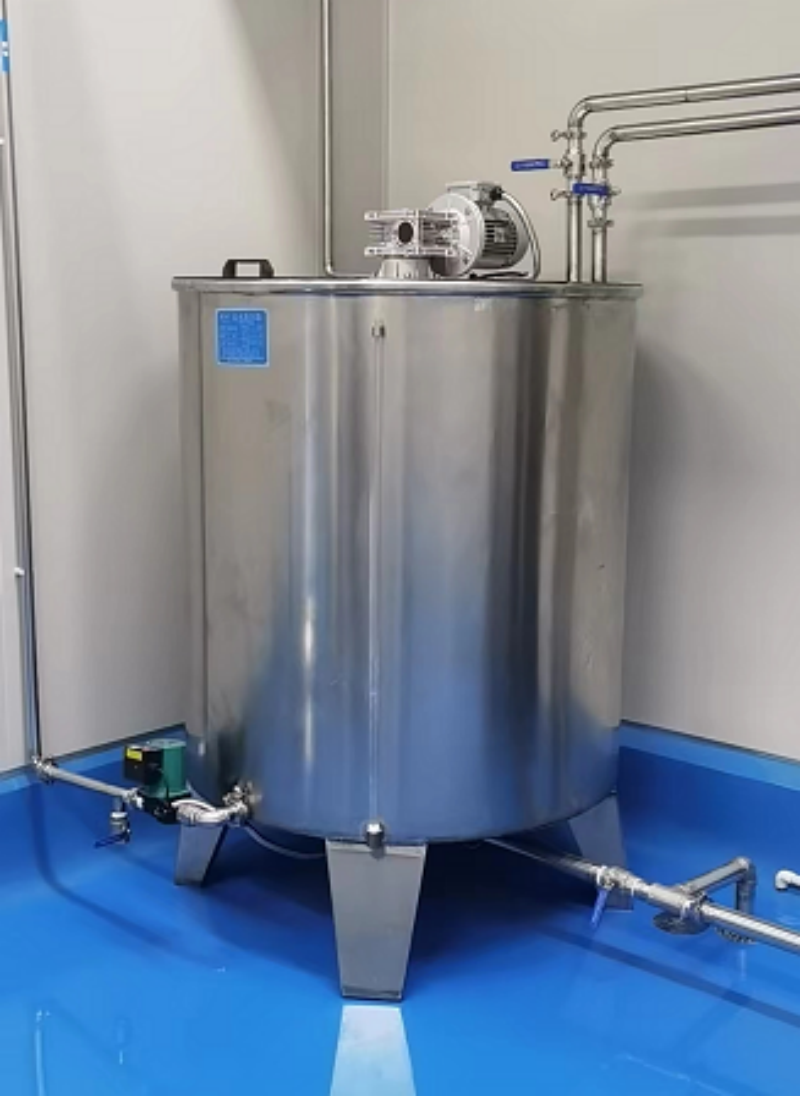

Salt water mixer

Barrel form: round or quadrangular octagonal.

Includes: stirrer, stirring bucket, infusion tube, infusion pump.

Material: Stirrer, stirring barrel, infusion tube, pipe fittings, valves are made of SUS304L stainless steel;

The infusion pump is made of acid-resistant plastic.

Uses and characteristics: easy to blend with water, such as adjuvants and other materials and water mixing and fusion, supply metering device, automated control, automatic water intake, automatic switching, reduce manual intervention.

2

metered supply

Installation

Material: The metering tank, infusion tube, and valve are made of stainless steel SUS304.

Uses and characteristics: The liquid stirred by the salt-water mixer is quantitatively supplied to the pasta pot and pasta, with precise measurement, realizing quantitative and automatic addition of water, stable and without residue, and the amount of water can be adjusted according to the different pasta products.

3

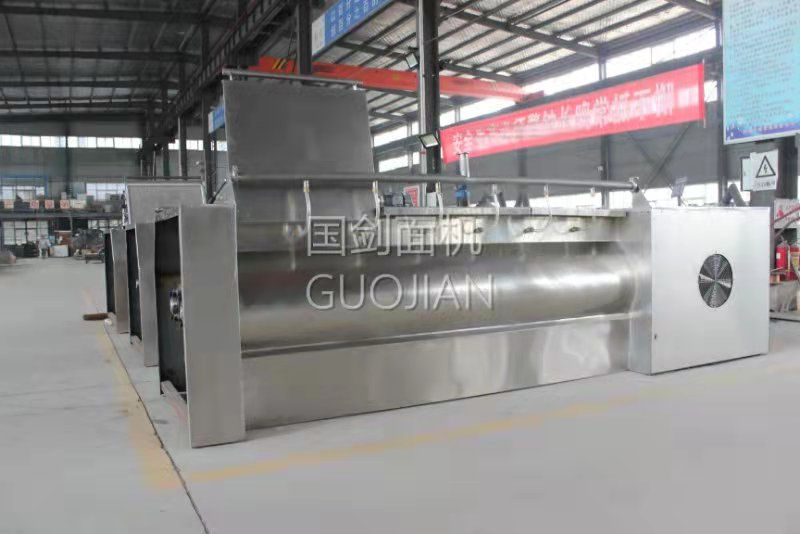

Double-speed pasta machine

Includes: 1 x hopper, automatic door opening for discharging.

Material: The face box, shaft, blade, and lower hopper are made of SUS304. Ordinary steel or cast iron: transmission parts, seat, cylinder. Nylon: positioning sleeve

Uses and Characteristics: The made dough has good tensile strength, is not easy to break, has good transparency, and has a chewy texture. This machine adopts elliptical double-shaft mixing paddles, which makes the mixing more even and the effect more ideal. Adopting reducer belt transmission, not only ensures the transmission ratio but also improves the stability of mechanical operation. The box and mixing shaft support bearing seat are designed separately to prevent the material from being contaminated.

4

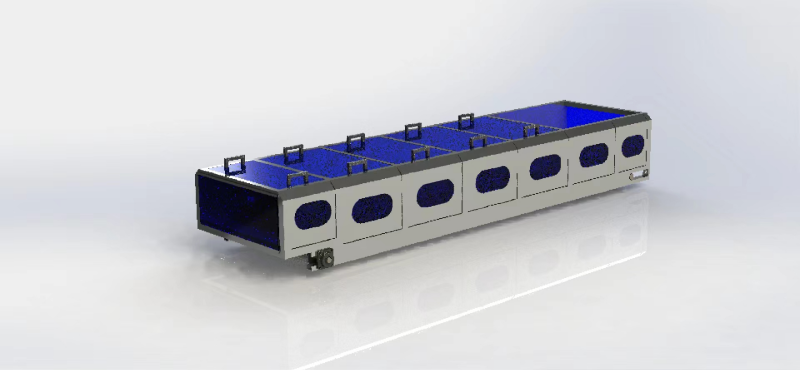

Static Cooker

Material: The noodle hopper, the plate thickness of pot body is 1.5mm, and the decoupling shaft is made of SUS304 stainless steel. The frame is made of carbon steel. Roller is made of SUS201 stainless steel. The conveyor belt is made of food grade polyester tape.

Appearance: Brushed stainless steel plate and bright rectangular tube.

Uses and Characteristics: Wake-up conveyor is used to leave the dough conveyed by the mixing machine to cook, and at the same time, it plays a role of uniform feeding for the next pressing process. (Frequency conversion speed control) Continuous uninterrupted feeding, customized spiral crushing feeding, semi-closed moisture preservation is conducive to better formation of gluten network.

5

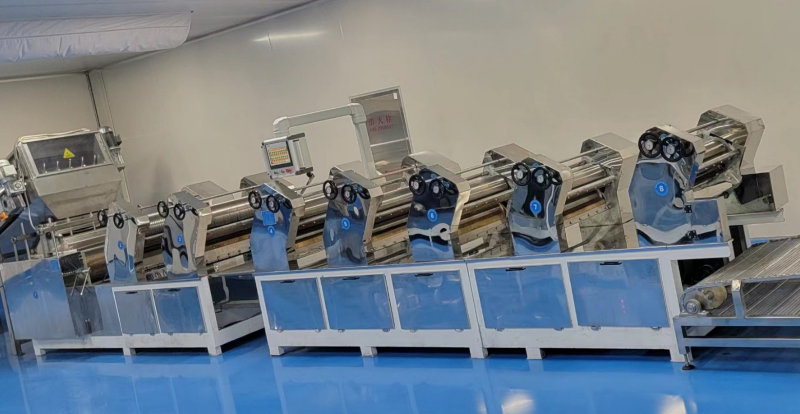

Monolithic. Continuous calendar

Including: guide hopper feeding device, automatic conveyor belt for pasta sheet, manual adjustment mechanism for pressure roller gap. The machine gang is floor-type.

Material: The drop hopper, feeding toggle bar, over-surface bottom plate, head guard, machine gang, frame, and transmission parts are made of carbon steel. Scraper: brass material. Pressure roller: cold hard alloy ordinary casting roller. Conveyor belt: food-grade polyurethane belt. Guards: Pressure roller guards are nylon.

Uses and characteristics: (Frequency conversion speed control) (photoelectric tracking) automatically calendars the summed up crumbled noodle into a noodle belt, calendering the noodle belt through multiple pressure rollers to the thickness required by the process. Automatic sheet loading and tracking, PLC programmed automatic program, the whole unit is designed as a group of one, high safety protection level, stable operation.

6

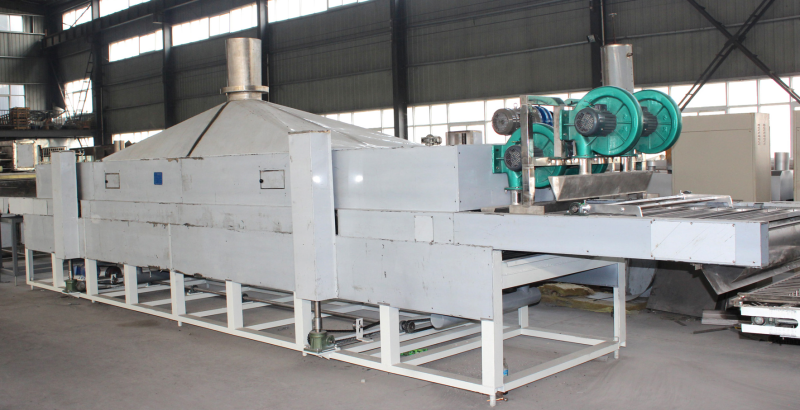

pasta steamer

Package includes: insulated steam tank, mesh conveyor belt, steam injection pipe, valve, pressure gauge, temperature gauge, exhaust hood, pipe, fan, axial fan, brush net device.

Material: stainless steel: trough, nozzle, conveyor chain, mesh belt, guide rail, exhaust hood, exhaust pipe.

           Nylon: nylon reel. Body Insulation: Aluminum Silicate Aluminum Silicate: Body Insulation.

Automatic cleaning device for mesh belt: nylon reel Water tank: stainless steel Brush: nylon.

Uses and features: independent transmission, adjust the length of the surface block without downtime water sealing, mechanical lifting and opening the door.

7

Tensile Cutting and Sorting Machine

Cutting knife form: rotary type (adjustable).

Including: a drencher, circulating pump, water blower, liquid collection tank, cutter, swing bucket, and mesh belt.

304 stainless steel: operation platform, stainless steel guardrail, rack, water catching tray, sealing plate, insert plate, drencher, water blower, liquid collection tank, mesh belt, guide rail, wall plate, active shaft, wheel, water tank, waterway, wind knife, side guard door, cut off knife shaft and knife shaft, pendulum hopper, falling surface hopper, tracking floating bucket.

Ordinary steel or cast iron: transmission parts, motor reducer and frame body external transmission parts. Nylon: Nip surface roller roll body

Adjustable nozzle spraying, swing bucket roller type falling surface, tracking floating bucket type surface feed.

Characteristics and uses: the steamed noodles, after stretching, softening, fixed length cut off, after two times zoom free fall into the molding machine, the basic guarantee of the weight of the noodle block.

8

Continuous Fryer

Including: The elevator, circulating pump, gear pump, degreasing fan, oil storage tank, and heat exchanger.

Material: stainless steel: noodle box, box cover, outer sealing plate, moisture exhaust cover, moisture exhaust pipe, oil catching tray; common steel or cast iron: upper frame of fryer, oil pot, transmission parts, body, oil outer wall, oil tank, oil circulation pipeline, valve. Aluminum silicate: body insulation.

Features: fryer and finishing machine with the same power, mechanical synchronization, circulating pump without water cooling, three-way smoke exhaust hood, using steam electric adjustment valve to adjust the temperature.

9

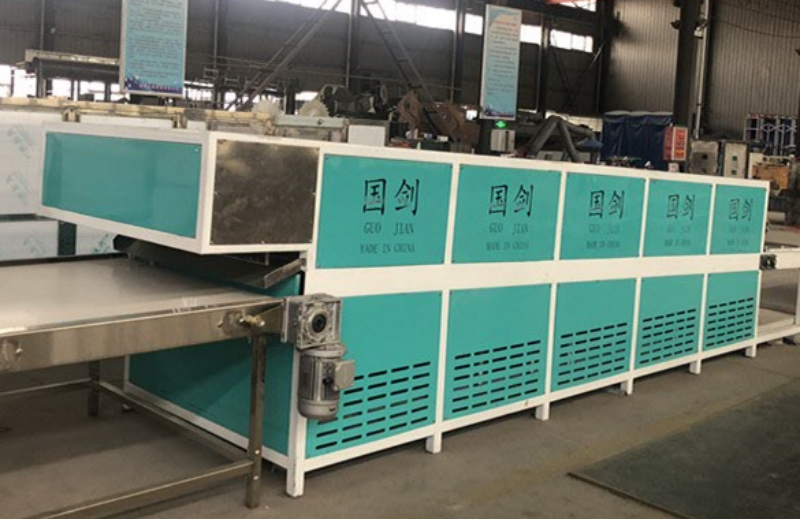

air cooler

Air-cooled form: powerful air cooling, centralized exhaust.

Including: air chute, mesh chain conveyor, slag catching tray, extractor fan, blowing fan, exhaust pipe.

Material: stainless steel: conveying net, slag catching disk, air duct. Carbon steel: frame, shaft, chain, transmission parts of the upper part of the perforated plate surface spraying, the lower part of the high-quality carbon steel plate surface spraying.

10

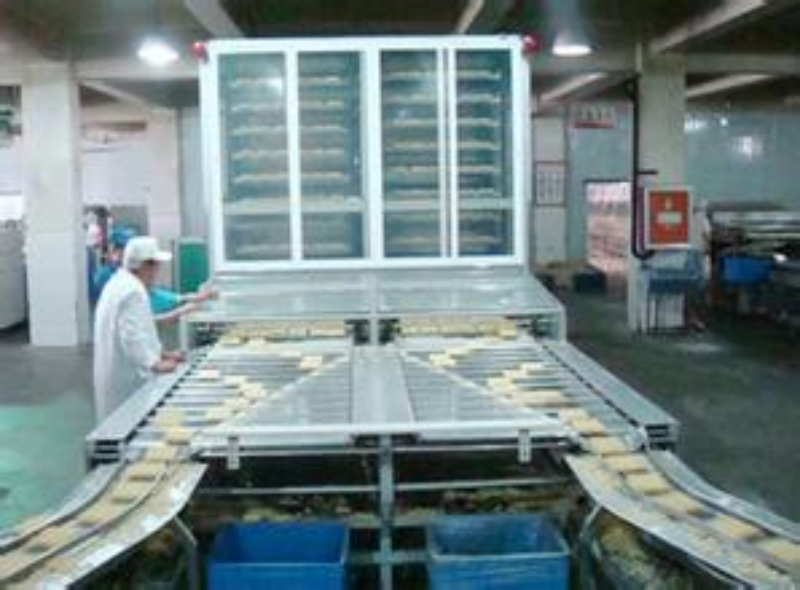

Diverter conveyor

Including: conveyor belt, frame, etc.

Material: The machine gang, pallet and slide plate are SUS201 stainless steel;

Frame, transmission parts, feet made of carbon steel; edible rubber: conveyor belt.

11

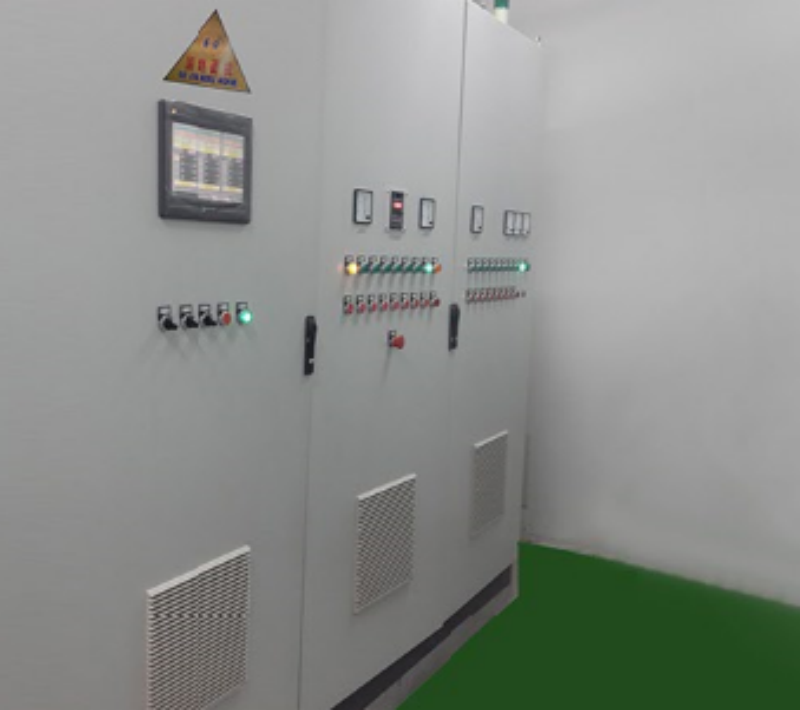

Electrical control system

Consists of 4 control cabinets;

Ⅰ # Cabinet: control brine mixing, measuring, and pasta.

Ⅱ# Cabinet: Controls static ripening, single slicing, calendering and shredding.

Ⅲ#: Control the steaming surface, set the length and cut off, into the box.

Cabinet Ⅳ#: Drying main drive, cooling, conveying (excluding cables outside the cabinet).

Includes: programmable controllers, inverters, housings, contactors, meters, etc.

The whole line adopts photoelectric sensing tracking, frequency conversion speed control, PLC program processing, self-batching, water supply, metering, continuous mixing and dough, dough maturing, single piece calendering, continuous calendering, steaming noodles, cutting off the conveyor, dryer, cooling and conveying, and adding the process link programmed system control, which can realize the fine-tuning of single machine, linkage of the whole line, and synchronous lifting and lowering speed.
