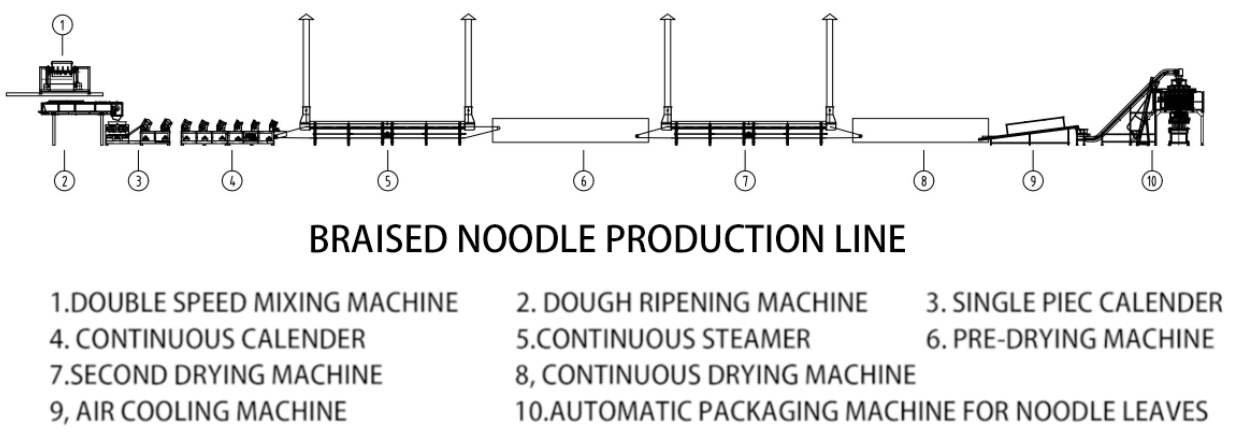

device name

remarks

Picture (for reference only)

1

Automatic powder supply system

Including: powder filter vibrating screen, Roots fan, positive pressure off wind, air supply pipe, negative pressure off wind, chakron, pulse dust collector.

Use and characteristics: the flour is transported to the flour machine through air pressure, while filtering the wire head, label, sundries and other, to ensure the flour cleanliness, no foreign body entry, product safety and health. At the same time, it reduces the pollution of flour in the transportation link, cleans the environment, and reduces the labor intensity.

2

 Saline mixer

 Barrel form: round or four corners.

Including: mixer, mixing bucket, infusion tube, infusion pump.

 Materials: agitator, mixing drum, infusion tube, pipe fittings, valve is made of SUS304L stainless steel;

 The infusion pump is made of acid-resistant plastic material.

Use and characteristics: fuse the materials such as easy to fuse with water and water mixing, supply the metering device, to realize automatic control, automatic water intake, automatic switching, and reduce manual intervention.

3

Measurement of supply

installation

 Material: the metering tank, infusion tube and valve are made of stainless steel SUS304.

Use and characteristics: the brine mixer stirred liquid, quantitative supply and surface pot and surface, accurate measurement, achieve quantitative automatic water, stable no residue, can be adjusted according to different surface water.

4

 Double speed and noodle machine

Including: 1 hopper, automatically open the door for feeding.

 Material: face box, shaft, blade and lower hopper are SUS304 material. Ordinary steel or cast iron: transmission parts, chassis, cylinder. Nylon: Locate the set

Use and characteristics: made of the skin of good tensile resistance, not easy to break, good transparency, chewy texture. This machine uses the elliptical biaxial mixing blade, and the surface is more uniform, the effect is more ideal. The reducer belt drive not only ensures the transmission ratio, but also improves the stability of mechanical operation. The box body is separated from the supporting bearing seat of the mixing shaft to prevent material contamination.

5

 Static ripening machine

 Material: the surface bucket, pot plate is 1.5mm thick, and the crushing shaft is made of SUS304 stainless steel. The frame body is carbon steel. The roller is made of SUS201 stainless steel. The delivery surface belt is a food-grade polyester tape.

 Appearance: frosted stainless steel plate and bright light rectangular pipe.

Use and characteristics: the surface conveyor is used to keep the dough transported by the dough machine static and cooked, and to evenly feed the next sheet pressing process.(Frequency conversion and speed regulation) continuous uninterrupted feeding, customized spiral broken feeding surface, semi-closed moisture protection is conducive to the better formation of gluten network.

6

monolithic. Continuous rolling machine

 Including: guide per feeding device, surface automatic conveyor belt, roller clearance manual adjustment mechanism. The machine help is for the landing type.

 Materials: hopper, feeding rod, bottom plate, head guard plate, machine, frame and transmission parts are made of carbon steel. Scraper: brass material. Press roller: cold hard alloy ordinary casting roll. Delivery strip: a food-grade polyurethane strip. Guard plate: the pressing roller guard plate is nylon.

Application and features: (frequency conversion speed regulation) (photoelectric tracking) automatically calder the good broken surface into a surface belt, extending the surface belt through multiple pressure rollers to the thickness required by the process. Automatic chip, tracking, PLC programming automatic program, the overall design of the unit for a group of integrated, high safety protection level, stable operation.

7

 Surface machine

 Including: thermal insulation steam tank, mesh conveyor belt, steam injection pipe, valve, pressure gauge, temperature gauge, exhaust cover, pipe, fan, axial flow fan, brush net device.

 Material: stainless steel: tank body, nozzle, conveying chain, net belt, guide rail, steam exhaust hood, steam exhaust pipe.

 Nylon: Nylon roll. Body insulation layer: aluminum silicate aluminum silicate: body insulation layer.

 Net belt automatic cleaning device: nylon tank tank:, stainless steel brush: nylon.

Use and characteristics: the use of steam continuous uninterrupted steam noodles, according to the demand can adjust the amount of steam, so that the steamed noodles to achieve the best effect. The steam box is sealed by water, which can effectively block steam leakage. The sealing cover of the steam box is used to facilitate the internal cleaning of the steam box.

8

 Quantitative juice mixing system

Use and characteristics: will cut off the measured products, evenly organized delivery to the automatic mixer, realize the automatic control of electrical appliances to achieve the uninterrupted operation of before and after equipment.

9

 Secondary steam turbine

 Including: thermal insulation steam tank, mesh conveyor belt, steam injection pipe, valve, pressure gauge, temperature gauge, exhaust cover, fan, brush net device.

 Material: stainless steel: tank body, nozzle, conveying chain, net belt, guide rail, steam exhaust hood, steam exhaust pipe. Ordinary steel or cast iron: transmission parts, pad plate, machine foot adjusting bolts. Nylon: nylon reel; rubber: sealing strip; aluminum silicate: body insulation layer.

Use and characteristics: the use of steam continuous uninterrupted steam noodles, according to the demand can adjust the amount of steam, so that the steamed noodles to achieve the best effect.

10

 Automatic oil mixing system

Use and characteristics: the internal structure of the mixer is reasonably distributed and uniform, the entrance is higher than the outlet to facilitate discharging, and the steam pipe in the mixer is convenient to clean, to achieve continuous work of the inlet surface and oil intake.

11

Air-cooled tunnel

 Including: mesh transmission chain width, temperature gauge, exhaust cover, damp discharge line, brush net device. Cold storage compressor, 304 stainless steel cold storage plate

 Materials: trough bottom frame, conveying network chain, guide rail, exhaust hood, exhaust pipe, transmission parts, pad, foot adjusting bolt, frame body, flange, etc. for SUS304 stainless steel. Nylon 66: carrier wheel.

Use and characteristics: using the principle of cold storage, the steamed and flavored finished noodles, quickly cool down in a short time, lengthen the shelf life of the steamed finished noodles.

12

Electrical control system

 Composed of 4 control cabinets;

 I # cabinet: control control powder supply system, brine mixing, automatic metering, spraying device, and surface.

# Cabinet: control static curing, single sheet and calendering.

# Cabinet: control the steam machine, cutting machine and mixer system.

# Cabinet: control the secondary surface steaming machine, mixing system and conveying.(Excluding off-cabinet cables)

 Including: programmable controller, frequency converter, shell, contactor, instrument, etc.

All the photoelectric sensing tracking, frequency conversion, PLC program, the ingredients, water, measurement, continuous and surface, dough ripening, single rolling, continuous rolling, steam surface, conveyor, mixing system, steam machine, mixing system, cooling, add process link programmed system control, can realize single fine-tuning, full linkage, synchronous lift speed.
