Dough leaf production line
Category：
E-mail ：
- Product Description
- Product Parameters
- Related Videos
- FAQ
-
Our newly developed sliced noodles production of complete equipment, with advanced technology, stable and reliable operation, high degree oautomation, safety and sanitation, low energy consumption, high eficiency.t can produces thin diamond dough sheet. Lobular dough sheet orrectangular doough sheets,can cooked ate or instant water broiled ate.
Product Parameters
Model Width of Roller Production Capacity:8h Size of Factory Installed Capacity(kw) Workers MYS-ll 350 350 1.2T 70*12*4.5 76 2 MYS-11450 450 2T 80*12*4.5 84 2 MYS-II 550 550 2.5T 80*16*4.5 95 3 MYS-lI 650 650 3.5T 90*16*4.5 115 3 MYS-II 750 750 4T 90*18*5 124 4 MYS-lI 850 850 4.5T 90*18*5 133 4 Sliced Noodles Production Process

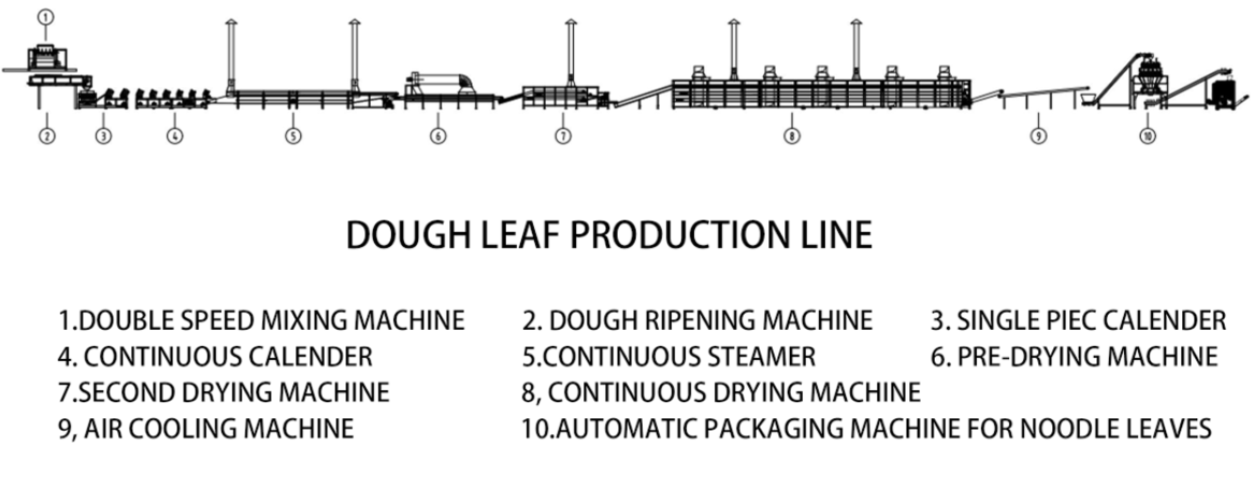

Raw Materials Automatic Supplying- Brine Mixing & Measurement - Double Speed Dough Maker - Dough Ripening - Monolithic Rolling -continuousRoling - Dough Sheet Forming- Automatic Sprinkling Dough Sheet- Five Layers (Reciprocating) Dewater And Drying- Cooling Conveying -Packaging-Warehousing
Equipment Configuration Sheet
device name
remarks
Picture (for reference only)
1
Saline mixer
Barrel form: round or four corners.
Including: mixer, mixing bucket, infusion tube, infusion pump.
Materials: agitator, mixing drum, infusion tube, pipe fittings, valve is made of SUS304L stainless steel;
The infusion pump is made of acid-resistant plastic material.
Use and characteristics: fuse the materials such as easy to fuse with water and water mixing, supply the metering device, to realize automatic control, automatic water intake, automatic switching, and reduce manual intervention.
2
Measurement of supply
installation
Material: metering tank, infusion tubes and valves are made of stainless steel SUS304.
Use and characteristics: the brine mixer stirred liquid, quantitative supply and surface pot and surface, accurate measurement, achieve quantitative automatic water, stable no residue, can be adjusted according to different surface water.
3
Double speed and noodle machine
Including: 1 hopper, automatically open the door for feeding.
Material: face box, shaft, blade and lower hopper are SUS304 material. Ordinary steel or cast iron: transmission parts, chassis, cylinder. Nylon: Locate the set
Use and characteristics: made of the skin of good tensile resistance, not easy to break, good transparency, chewy texture. This machine uses the elliptical biaxial mixing blade, and the surface is more uniform, the effect is more ideal. The reducer belt drive not only ensures the transmission ratio, but also improves the stability of mechanical operation. The box body is separated from the supporting bearing seat of the mixing shaft to prevent material contamination.
4
Static ripening machine
Material: the surface bucket, pot plate is 1.5mm thick, and the crushing shaft is made of SUS304 stainless steel. The frame body is carbon steel. The roller is made of SUS201 stainless steel. The delivery surface belt is a food-grade polyester tape.
Appearance: frosted stainless steel plate and bright light rectangular pipe.
Use and characteristics: the surface conveyor is used to keep the dough transported by the dough machine static and cooked, and to evenly feed the next sheet pressing process.(Frequency conversion and speed regulation) continuous uninterrupted feeding, customized spiral broken feeding surface, semi-closed moisture protection is conducive to the better formation of gluten network.
5
monolithic. Continuous rolling machine
Including: guide per feeding device, surface automatic conveyor belt, roller clearance manual adjustment mechanism. The machine help is for the landing type.
Materials: hopper, feeding rod, bottom plate, head guard plate, machine, frame and transmission parts are made of carbon steel. Scraper: brass material. Press roller: cold hard alloy ordinary casting roll. Delivery strip: a food-grade polyurethane strip. Guard plate: the pressing roller guard plate is nylon.
Application and features: (frequency conversion speed regulation) (photoelectric tracking) automatically calder the good broken surface into a surface belt, extending the surface belt through multiple pressure rollers to the thickness required by the process. Automatic chip, tracking, PLC programming automatic program, the overall design of the unit for a group of integrated, high safety protection level, stable operation.
6
Surface machine
Including: thermal insulation steam tank, mesh conveyor belt, steam injection pipe, valve, pressure gauge, temperature gauge, exhaust cover, pipe, fan, axial flow fan, brush net device.
Material: stainless steel: tank body, nozzle, conveying chain, net belt, guide rail, steam exhaust hood, steam exhaust pipe.
Nylon: Nylon roll. Body insulation layer: aluminum silicate aluminum silicate: body insulation layer.
Net belt automatic cleaning device: nylon tank tank:, stainless steel brush: nylon.
Use and characteristics: independent transmission, adjust the length of the surface block need not stop water sealing, mechanical lifting door.
7
Pre-dryer
Including: centrifugal fan, radiator, exhaust pipe, etc.
Material: net belt, inner guard plate, outer guard plate, air duct for 304 stainless steel. Carbon steel: frame body, radiator, chain, rail, pipe, valve.
8
Cut off the molding and spreading machine
timber Material: rack, side plate, split frame, cutter shaft, support shaft, drive shaft, starting shaft, split grid rod, sliding panel.
The outer guard plate is made of SUS304 stainless steel material;
Ordinary steel or cast iron: transmission parts, drive part. Silicone rubber: dividing the mesh sheet.
particular Point: use the planetary wheel differential mechanism, no unlimited limit surface block alignment.
9
Three-layer plane dryer
Including: centrifugal fan, axial flow fan, radiator, exhaust pipe, etc.
Material: 304 stainless steel: net belt, inner plate (thickness 1.0mm), outer plate. Carbon steel: frame body, radiator, chain, rail, pipe, valve.
Main purpose: will cut off the dough through high temperature and high wind, so that its rapid dehydration and drying to form instant noodle block equipment characteristics: customized low temperature drying, good taste, short rehydration time
10
Air cooling machine
Air cooling form: strong air cooling, concentrated exhaust.
Including: air trough, net chain conveyor belt, slag receiving plate, exhaust fan, blowing fan, exhaust pipe.
Material: stainless steel: conveyor net, slag receiving plate, air duct. Carbon steel: the upper part of the frame, shaft, chain and transmission parts is sprayed with punching plate surface, and the lower part is sprayed with high quality carbon steel plate surface.
11
Electrical control system
Composed of 3 control cabinets;
I # cabinet: control the brine mixing, metering, and surface.
# Cabinet: control static curing, single sheet and calendering.
# Cabinet: control the cut-off, drying and conveying.(Excluding off-cabinet cables)
Including: programmable controller, frequency converter, shell, contactor, instrument, etc.
All the photoelectric sensing tracking, frequency conversion, PLC program processing, the ingredients, water, metering, continuous and surface, dough ripening, single rolling, continuous rolling, steam surface, cut off conveyor, dryer, cooling, add process link programmed system control, can realize single fine-tuning, all linkage, synchronous lift speed.
-
Model Width of Roller Production Capacity:8h Size of Factory Installed Capacity(kw) Workers MYS-ll 350 350 1.2T 70*12*4.5 76 2 MYS-11450 450 2T 80*12*4.5 84 2 MYS-II 550 550 2.5T 80*16*4.5 95 3 MYS-lI 650 650 3.5T 90*16*4.5 115 3 MYS-II 750 750 4T 90*18*5 124 4 MYS-lI 850 850 4.5T 90*18*5 133 4 -
-
Q:How long is your machine guarantee?
A: One year (Calculated from the equipment arrives the customer's side.). We always have new technology support on machine service life period. And welcome to contact us when machine have any problem.
Q: Will you send engineers to install production line in customer plant?
A: Yes, but installation will have extra cost payable by the customer, Or you can get local contractors to do the commissioning and we send one supervising engineer.
Q: Do you supply packing machine?
A: We have long-term cooperation packing machine supplier, we will help tocontact them; Or we share supplier contact information, then customer directly contact supplier.
Q: Will you support each food formula?
A: Yes, we support each product production technology and recipe to customer.
